The patented Peachtree Bridge gives the luthier a whole new world of possibilities when designing headless guitars. No longer do you have to compromise the look or feel of your guitars, with the Peachtree Bridge™ Integrated Tuning System, the bridge and tuners come in one compact, easy to install package.

So, if you are looking for a tuning system for your newest headless guitar design, and want to have more artistic freedom while maintaining rock solid pitch stability, choose the Peachtree Bridge Integrated Tuner/Bridge.

---

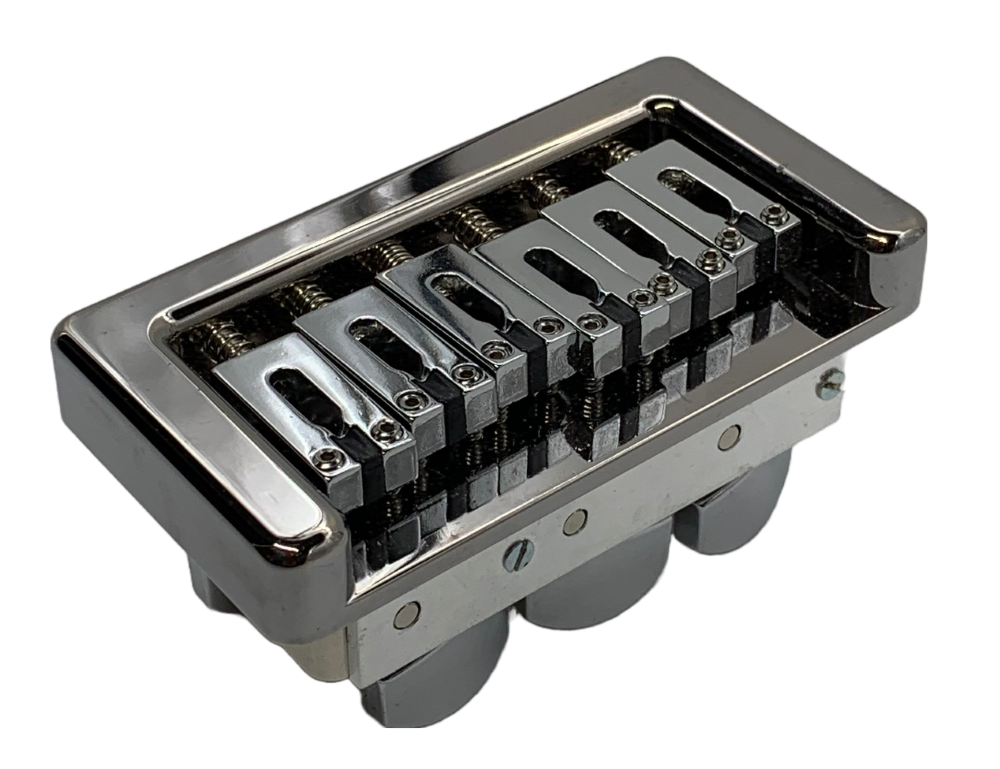

The Peachtree Bridge is a patented, compact, one piece, combined bridge and tuner assembly for headless guitars. Manufactured from solid machined brass (standard) or optional stainless steel or aircraft grade aluminum (premium pricing and extended lead times apply), the system allows for a complete solution to the limits of standard tuner technology.

1 - Self-locking design, just slide the string in, following the instructions, and tighten the tuner. No tying or tightening locking screws.

2 - Low profile allows the tuner to be tucked away into the body of a guitar

3 - Miniaturized Tuners use standard tuner buttons that are easily turned by hand or standard string winder.

4 - Tuners reside in housing that mounts directly to the bottom of the bridge, optimizing tone and sustain.

5 - Bridge designed for low height with a smooth profile, allowing for very comfortable playing

6 - Full height and intonation adjustments on each string

7 - Bridge/Tuner assembly mounts from under the guitar, no mounting screws visible on the top.

Dimensions: 3.5"x1.75"x1.75"

Weight: 1 Lb

The standard Peachtree Bridge is aimed at standard scale guitars, while versions for bass, extended range guitars and other stringed instruments can be developed for bespoke designs.

Contact us for details on customization options and pricing.
